About The Two Test Steps Of Abrasion Resistance And Pilling Resistance For Martindale Sep 10, 2022

About The Two Test Steps Of

Abrasion Resistance And Pilling Resistance For Martindale

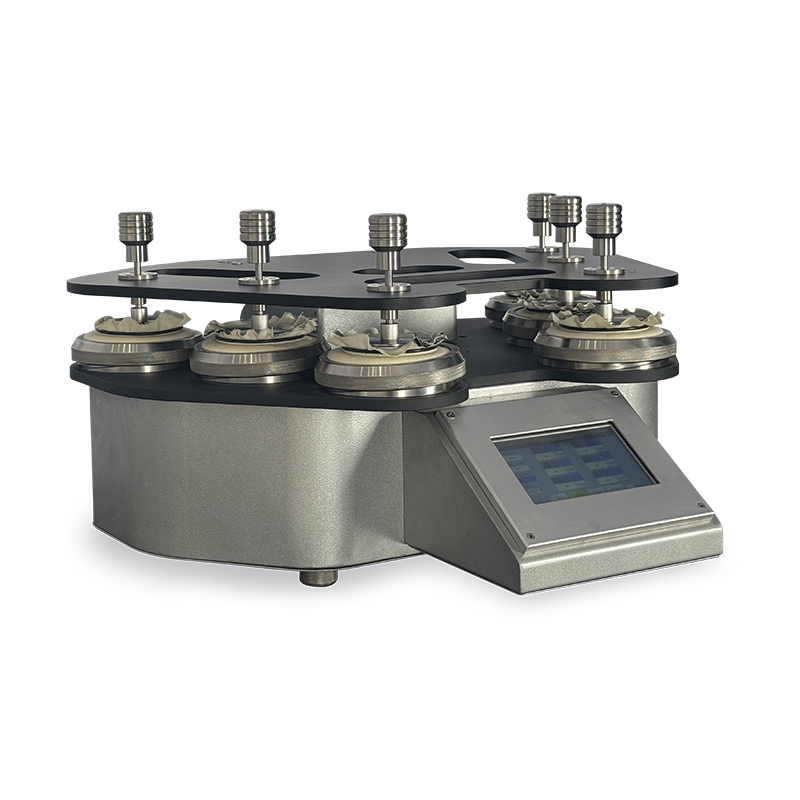

Martindale Abrasion and Pilling Tester


The Martindale Abrasion and Pilling Tester is the standard method of determining the wear resistance of textiles or leather and the resistance to pilling.


Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

Below are two testing steps for Martindale.


1. Martindale Abrasion Testing


1.1 Test abrading table installation.


1.2 Put on the installed sample holder assembly on abrasion table and use 1pc of boltto fixed it. Place the weight(12Kpa or 9Kpa), according to the standard selection.


1.3 Position pin hole change.


1.4 Setting test cycles and speed that display on the left.


1.5 Click "TEST" to running.


1.6 When martindale fabric abrasion test machine reached test cycles, it will stop aautomatically, observe specimen.

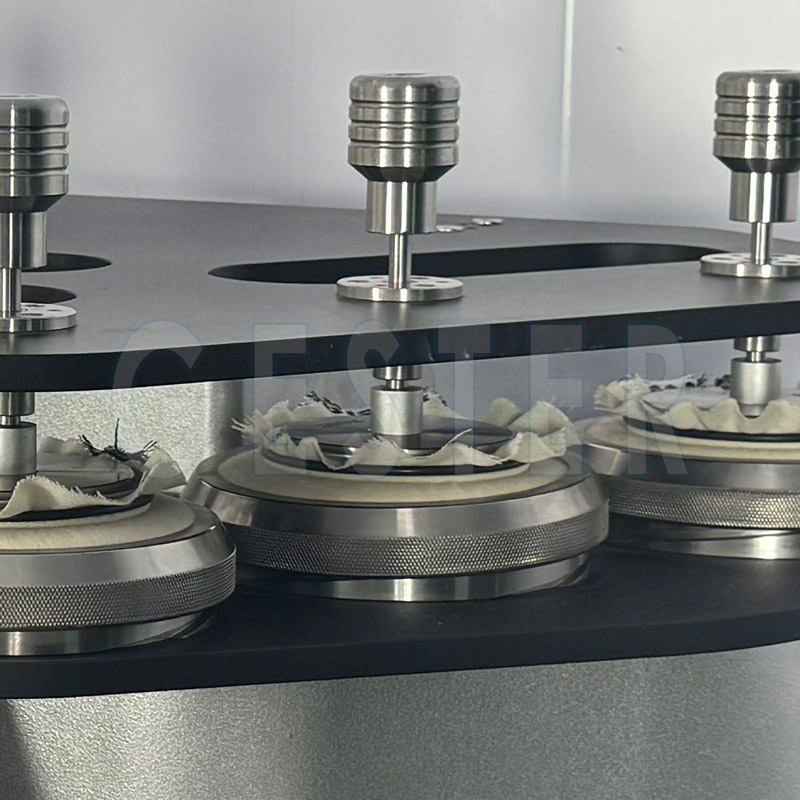

martindale fabric abrasion test machine


2. Martindale Pilling Testing


2.1 Place pilling specimen holder on Abrasion table, then place 260g weight,close the top cover. Use 1pc bolt to fixed it.


2.2 Position pin hole change.


2.3 Setting test cycles and speed that display on the left.


2.4 Click "TEST" to running.


2.5 When martindale pilling test machine reached test cycles, it will stop automatically, observe specimen.

Abrasion resistance pilling martindale tester adaptable to test a wide range of applications including textiles, socks, leather, coated upholstery, carpets, wood and shirt collars.
