Does Box Compression Tester Test 30kN – Here are the Truth about Box Compressive Strength March 13 , 2026

Does Box Compression Tester Test 30kN –

Here are the Truth about Box Compressive Strength

whether a box compression tester can test 30kN is not only related to the accuracy of compressive strength detection for packaging products, but also directly affects your packaging quality control efficiency, testing cost and inspection process optimization.This article will provide you with its testing principle, equipment design characteristics, core test functions and result accuracy guarantee methods, helping you optimize packaging detection processes, reduce test errors, while ensuring the accuracy and reliability of box compressive strength test data in specific application scenarios.

Does Box Compression Tester Test 30kN?

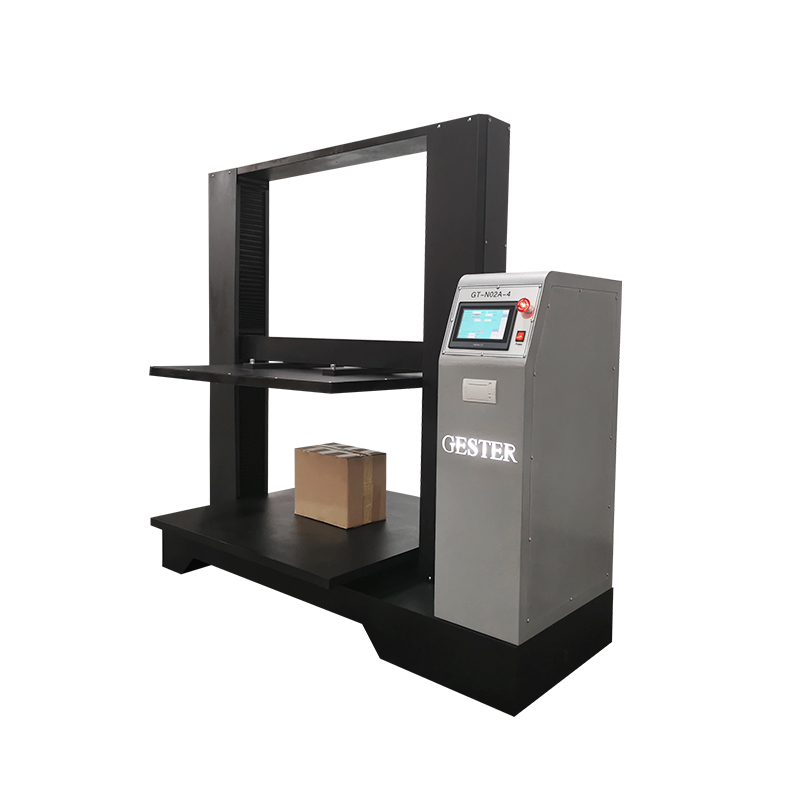

YES, a professional box compression tester can accurately test 30kN compressive strength, and the GT-N02A Type box compression tester is specially designed for the compressive strength test of packages with a strength value smaller than 30kN.This is because the GT-N02A box compression strength tester is built with targeted high-precision mechanical and control components for the 30kN test range. Zinc and copper are the main alloying elements in brass. The core design of a pair of threaded shafts & guide pillars and imported control motor is the fundamental guarantee for its 30kN testing capability, which endows the equipment with the salient features of good parallelism, reliable measurement precision and high return speed (250mm/min) in the 30kN test range.

However, it should be noted that the 30kN box compression tester is only suitable for the compressive strength test of packages matching its test range. For packaging with a compressive strength exceeding 30kN, a tester with a larger range is required to avoid equipment damage and test data distortion.

Testing Capability vs. Equipment Design & Components

The GT-N02A box compression tester’s stable 30kN testing capability is closely related to its advanced structural design and high-quality core components. Here are how these designs and components influence its 30kN testing performance:

Threaded Shafts & Guide Pillars Structure – This mechanical structure is the key to ensuring good parallelism of the equipment. In the 30kN pressure loading process, it can make the pressure evenly applied to the tested sample, avoid uneven force caused by equipment tilt, and fundamentally ensure the accuracy of 30kN test data.Imported

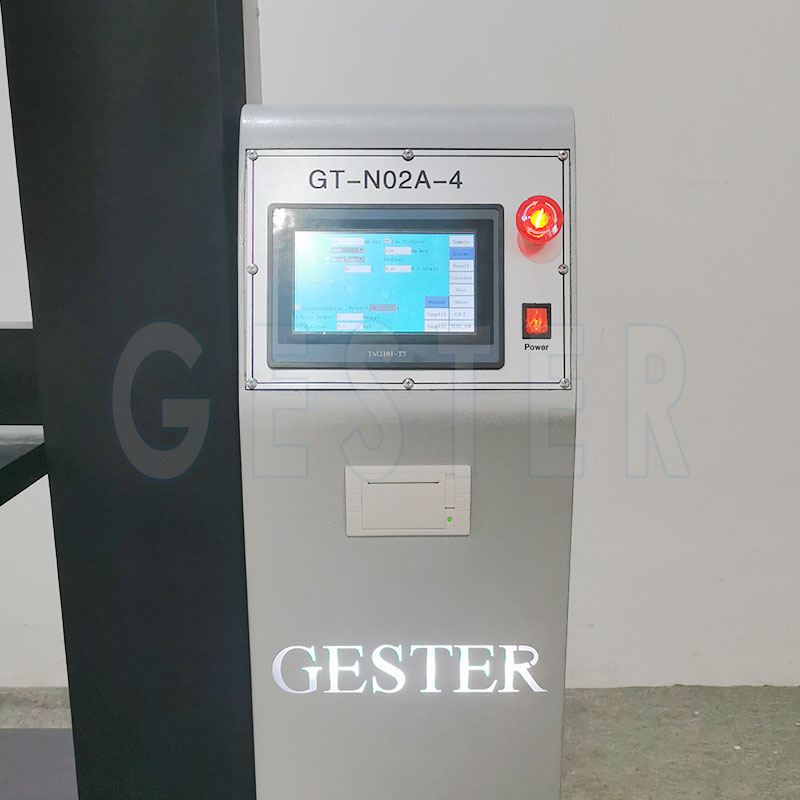

Control Motor – The imported motor is responsible for pressure control and the reset movement of the test platform. It not only ensures the reliable precision of pressure measurement in the 30kN range, but also achieves a high return speed of 250mm/min, greatly improving the test efficiency of batch 30kN compressive strength detection.

Integrated System Design – The overall matching design of mechanical structure and electrical control system ensures the stationarity of the equipment during 30kN testing. There is no obvious vibration or pressure fluctuation in the loading process, which further guarantees the stability and repeatability of 30kN test results.

Core Test Functions of Box Compression Tester

The corrugated box compression strength tester is equipped with a full set of standard test functions, which can meet all parameter testing requirements of box compressive strength in the 30kN range, and also has humanized auxiliary functions for data processing and equipment operation. Its core functions are divided into two categories: professional compression test functions and standard parameter processing functions:

Professional Compression Test Functions

Strength Test
Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength within the 30kN range. It is the most basic and core test function for detecting the ultimate compressive strength of packaging.

Constant Value Test
There are two parameters which are to be set in the constant value test: load force value and deformation value. The user can set one or both of them according to the practical requirement. The measure is complete when any parameter reaches the set value, which is suitable for the customized compressive strength test of special packaging.

Stacking Test
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour). When the test starts, the system will check the current pressure at any moment to ensure the set value; the measure is complete when the test time is expired or the deformation value exceeds the set one within testing time, which simulates the actual stacking pressure of packaging in logistics and storage.

Applications of Box Compression Tester

The box compression strength tester is not only suitable for corrugated boxes, but also for the compressive strength test of various packaging and containers with a compressive strength within 30kN. The main applicable sample types are:
Corrugated board boxes and Cartons
Plastic Packaging
Wooden box

How to Ensure Reliable Compression Test Results?

To ensure the accuracy and reliability of Compression Test For Corrugated Boxes test results, it is necessary to carry out standardized operation and comprehensive management from equipment, sample, environment and operation. The specific methods are as follows:

Regular Equipment Calibration
Carry out full parameter calibration of the box compression tester on a regular basis, including pressure precision, platform parallelism and reset speed. For frequently used equipment, the calibration frequency should be appropriately increased to ensure that all performance indicators are within the standard range.

Standardize Sample Preparation
Strictly select the tested samples with standard shape, intact surface and uniform material. For batch testing, the samples should be randomly selected according to the inspection standard to ensure the representativeness of the samples, and avoid using unqualified samples for testing.

Control Testing Environment
Fix the test environment of the corrugated box compression strength tester, keep the ambient temperature and humidity stable, and avoid carrying out the test in the environment with large temperature and humidity changes. It is recommended to set up a special test room to ensure the stability of the physical properties of the sample.

Follow International Test Standards
Carry out the compressive strength test in strict accordance with ISO2872, ASTM D642 and other international standards, including parameter setting, loading speed, test time and data recording, to ensure the standardization of the whole test process.

Standardize Operational Procedures
Carry out professional training for the operators of the box compression tester, standardize the sample placement, equipment operation and data processing steps, and avoid human errors caused by non-standard operation.

Timely Equipment Maintenance

Regularly clean and maintain the core components of the equipment such as threaded shafts, guide pillars and imported motors, add lubricating oil to the mechanical parts, and check the operation status of the electrical control system to ensure the stable operation of the equipment during testing.

FAQs

Does the box compression tester work for all packaging types?
No, it does not. The box compression tester is only suitable for packaging with a compressive strength smaller than 30kN, such as corrugated boxes, plastic packaging and small wooden boxes. For packaging with a compressive strength exceeding 30kN, a tester with a larger range is required.

What is the return speed of the GT-N02A box compression tester?
The GT-N02A box compression strength tester has a high return speed of 250mm/min, which can greatly improve the test efficiency of batch compressive strength detection.

What core test functions does the box compression tester have?
It has three core professional test functions: Strength Test, Constant Value Test and Stacking Test, and also has parametric test, display, memory, statistics, print and other standard parameter processing functions.

Which international standards does the 30kN box compression tester comply with?
It strictly complies with ISO2872, ISO2874, ASTM D642 and ISO 12048, and the test results have international universality and authority.
